Exile Motorsport 13 Row Oil Cooler – 245mm Matrix -10 AN JIC – Black Alloy

$52.49

Out of stock

Compare
Add to wishlist
SKU: EXILE-OIL-COOLER-13-ROW-BLACK Category:
Description

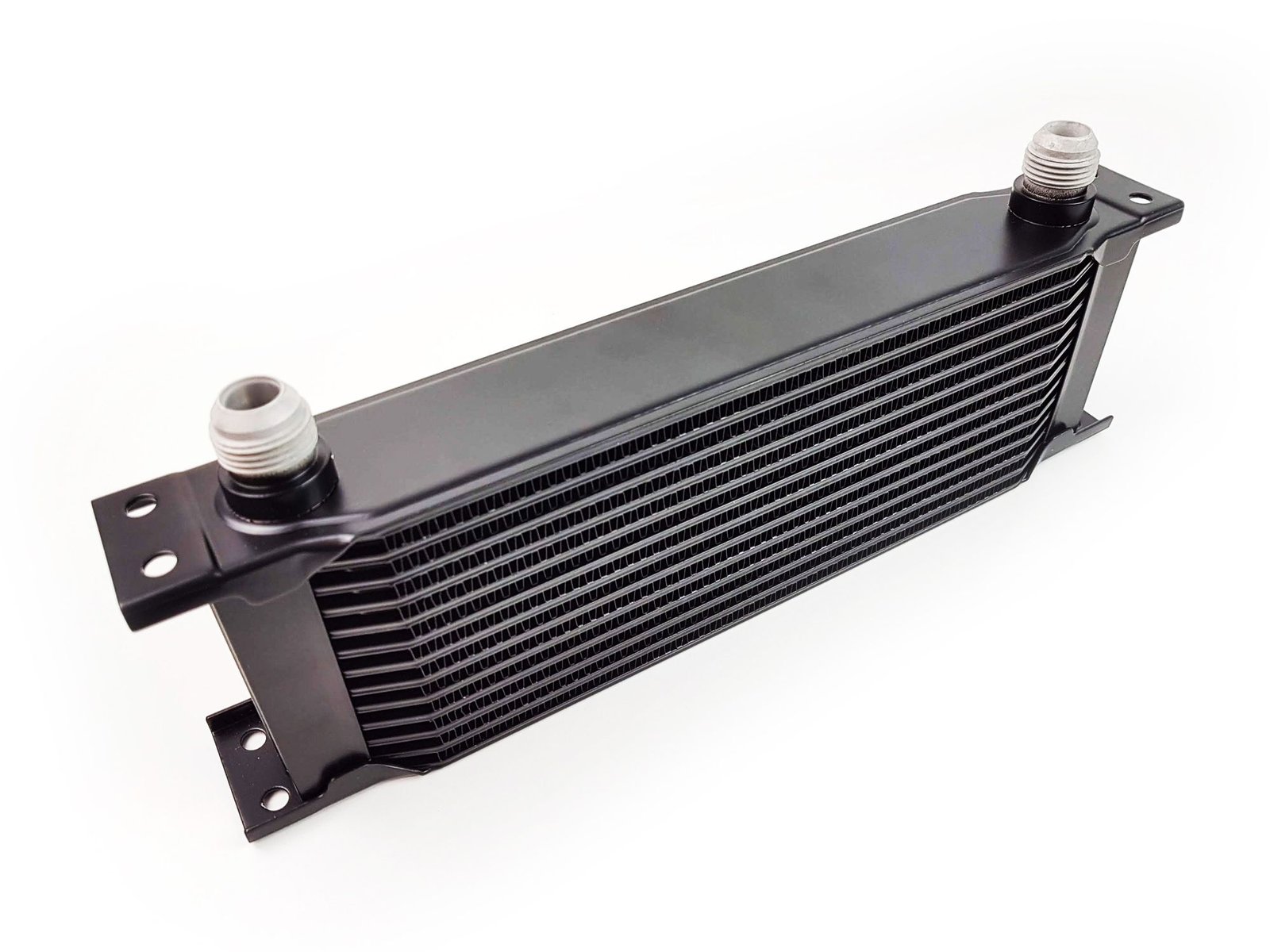

Exile Motorsport 13 Row Oil Cooler – 245mm Matrix -10 AN JIC – Black

Our black powder coated aluminium oil cooler / heat exchanger is the ideal product for use in an array of custom oil cooling setups. With it’s solid lightweight design 13 row core, this cooler provides suitable cooling performance for most street and track cars up to a 1.8L engine size in both normally aspirated and turbocharged form.

Each cooler is fitted with AN-10 JIC fittings to the inlet and outlet for easy installation of braided hose to the filter housing. Welded end brackets provide 2X mounting holes per corner.

Exile Motorsport coolers are rigorously tested to a maximum pressure of up to 170psi (11.5 bar) and have a working pressure of 150psi (10bar).

  • Specifications
  • Manufactured in light weight T-6061 Aluminium
  • Core Dimensions: L:245mm H:100mm D:50mm
  • Overall Dimensions: L:328mm H:100mm D:50mm
  • 2X AN-10 inlet / Outlet
  • Black powder coated finish
  • Supplied with a 1 year replacement warranty
  • Free 1st Class postage
  • Same day dispatch on orders placed before 2pm (Mon-Fri)

Compatibility:
This 13 row oil cooler is recommended for engine sizes up to 1.8L. High horsepower engines may require a larger core.
