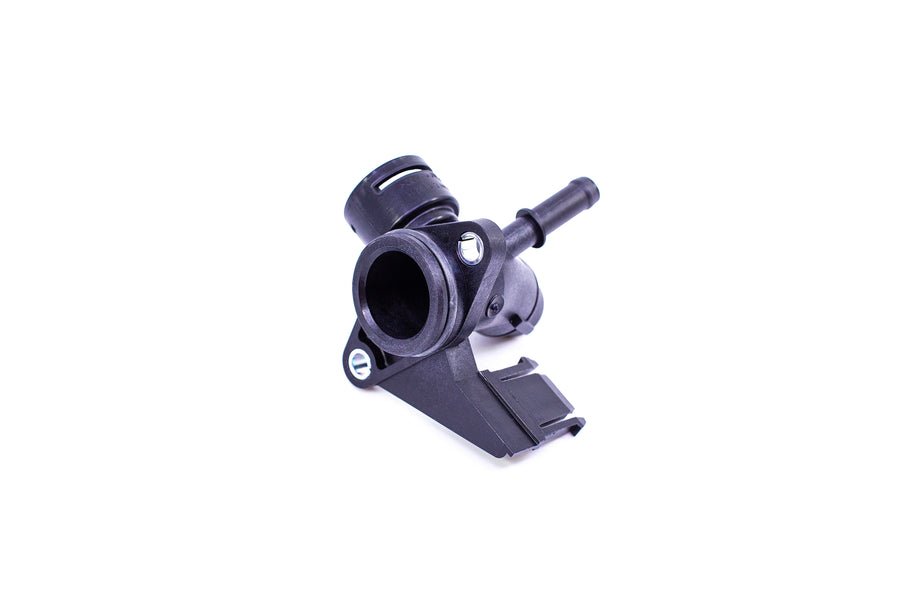

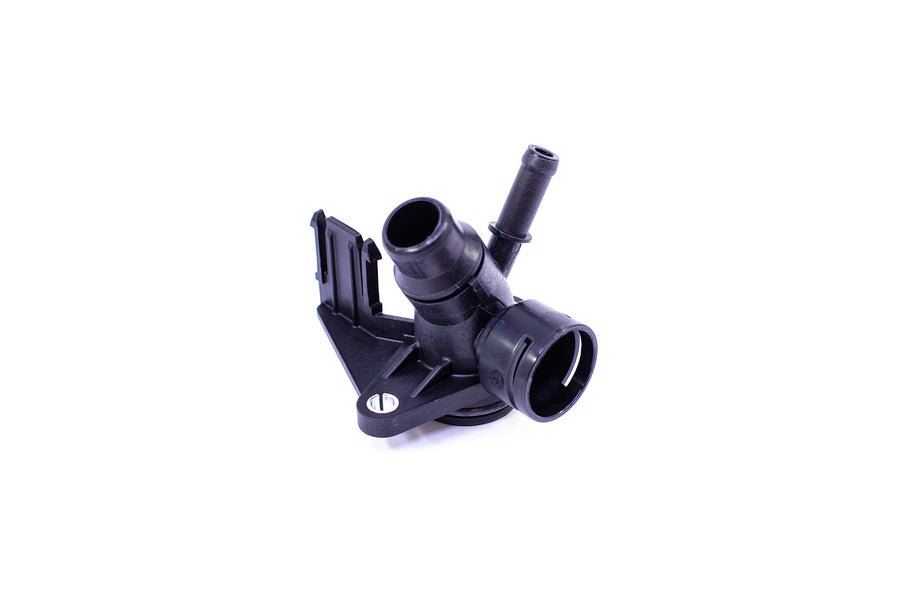

06H121132H – Engine Coolant Inlet Flange – Audi B8/C7 MLB EA888 Engines

Manufacturer: Genuine Audi / Volkswagen Parts.

Equivalent and previous part numbers: 06H121132H, 06H121132E

06H121132H is the rear cylinder head coolant flange (also referred to as the coolant inlet flange, coolant outlet flange, or cylinder head cooling flange, depending on the catalog). It is a genuine Volkswagen/Audi part that supersedes 06H121132E.

What it does

The flange bolts to the rear of the cylinder head and connects several coolant hoses. It forms part of the engine’s coolant distribution system and seals against the cylinder head with O-rings.

Common failure

This is one of the more common coolant leak points on the EA888 Gen 2 engines.

Typical failures include:

• Plastic body becomes brittle from heat cycling.
• Hose outlet snaps during hose removal.
• O-ring hardens and leaks.
• Coolant residue or pink/white crust around the back of the engine.
• Slow coolant loss without an obvious leak.
• Coolant smell after driving.

Common symptoms

• Low coolant warning.
• Coolant dripping from the rear of the engine onto the gearbox.
• Sweet coolant smell.
• Steam from the rear of the engine after shutdown.
• Dried pink G12/G13 coolant deposits around the flange.

Previous part number

• 06H121132E → 06H121132H (latest revision)

Equivalents: 06H121132E

Fitment:

Fitment:

AUDI

A4 Allroad Quattro    8K 2010-2016
A4/S4/Avant/Quattro    8K 2008-2012
A4/S4/Avant/Quattro    8K 2013-2015
A5/S5 Cabriolet    8F 2012-2017
A5/S5 Coupe/Sportback    8T 2012-2016
A6/S6/Avant/Quattro    4G 2011-2014
Q5    8R 2009-2012
Q5    8R 2013-2017

VOLKSWAGEN

Amarok    2H 2010-2012
Amarok    2H 2013-2016
Amarok    S6 2017-2022
Transporter/Caravelle    7E 2012-2015
Transporter/Caravelle    7F 2012-2015 Flatbed
Transporter/Caravelle    SF 2016-2019 Flatbed
Transporter/Caravelle    SG 2016-2019

We source genuine Audi and Volkwagen parts from around the world to provide you with the best price for each part.

Why choose a GENUINE part?

• Correct fitment, guaranteed.
• Made to the highest standards.
• Extensively tested by the manufacturer for best performance and longevity.
• Accepted by more workshops.
• Maintains your factory warranty.
• Improve vehicale resale value.

Buy with confidence, knowing you chose the best for your car
