Silicone Fibreglass Fire Sleeving Protective Heat Sleeve AN-4 to AN-10
Price range: $7.99 through $12.99
Automotive Heat Sleeve Silicone Fibreglass Fire Sleeving Protective AN-4 to AN-10
Our British made automotive heat sleeve is manufactured from ‘E’ glass fibre yarn knitted to form a sleeve and coated with high-grade silicone elastomer rubber. This product lends itself ideally to the automotive industry as it provides the best heat protection and flexibility whether it be needed for protection at normal engine bay operating temperatures or in emergency situations where fire or flame are present.
Our fire sleeve is a very flexible sleeving designed to protect wires, cables, and hoses from high ambient temperatures. It will offer continuous protection at an operating temperature of 260°C and can withstand a molten metal splash at 1200°C lending itself ideally to both OEM replacement or performance vehicle applications.
Â
Sizes
We currently stock 3 sizes of fire sleeve to cover -AN sizes from AN-4 through to AN-10. Of course this sleeving can be used with any kind of hose however we have chosen the closest sizing to match the dash AN systems as closely as possible.
Sizes available are as follows and are supplied in a 0.5m length. When ordering multiple amounts, please note that these will be supplied in a continuous single length:
AN-4 / 12mm (MAX Inside Diameter)
AN-6 / 12mm (MAX Inside Diameter)
AN-8 / 16mm (MAX Inside Diameter)
AN-10 / 19mm (MAX Inside Diameter)

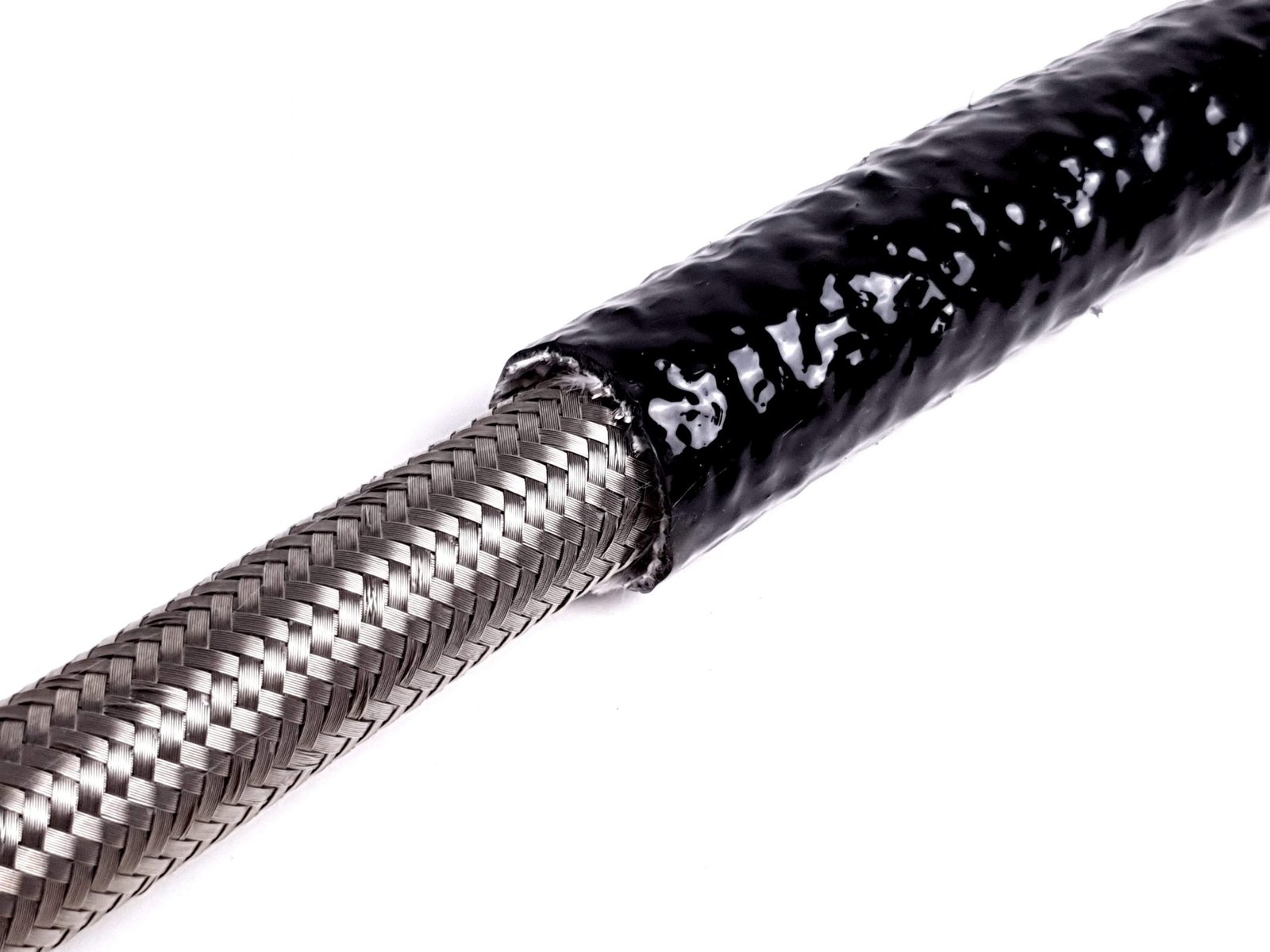

*Not supplied with hose or wire. Product image for illustration purposes only*
Â
Technical Information
Colour: Black
Wall Thickness: 4mm +/-0.5mm
Average Dielectric Strength: 30Kv +
Â
Grade
Silicone coated glass sleeving (Industrial Grade) is manufactured from ‘E’ glass fibre yarn knitted to form a sleeve and coated with high grade iron oxide silicone elastomer rubber. The glass sleeving possesses outstanding characteristics making it ideal for protecting hose assemblies, cables and wires from high heat sources and occasional flame.
- High flexibility
- Continuous protection at an operating temperature of 260 deg. C
- Ability to withstand a molten metal splash at 1200 deg. C
- Highly resistant to most oils, hydraulic fluids, fuels, acids an alkalis
- When exposed to flame the high grade rubber will form a protective SiO2 layer
- Health & Safety -Provides personnel with protection against burns from hot hoses, steam lines etc.
- Helps to reduce energy loss by retaining heat within pipework
- Excellent flame resistance
- Good abrasion resistance
| size | AN-10, AN-12, AN-4, AN-6, AN-8 |
|---|---|
| Brand | Exile Motorsport |
