Extended Wheel Nut Stud Bolt BMW 1 3 5 6 7 Series Z3 Z4 – M12 x 1.5 – 45mm
$5.75
Extended Wheel Nut Stud Bolt BMW 1 3 5 6 7 Series Z3 Z4 – M12 x 1.5 – 45mm
This extended wheel nut stud is ideal for use with wheel spacers and PCD adapters and will fit a range of BMW models. The bolt is a direct replacement for the original M12 x 1.5 OE wheel bolt with the following part numbers:
Please be aware some of these vehicles listed may take a different size wheel stud (M14). Please match wheel bolt to M12 x 1.5
3613 1 095 390
3613 1 117 190
3613 1 118 949
3613 1 122 158
3613 1 123 585
3613 1 126 014
3613 1 126 191
3613 6 781 150
Pack contains 1x wheel nut stud.

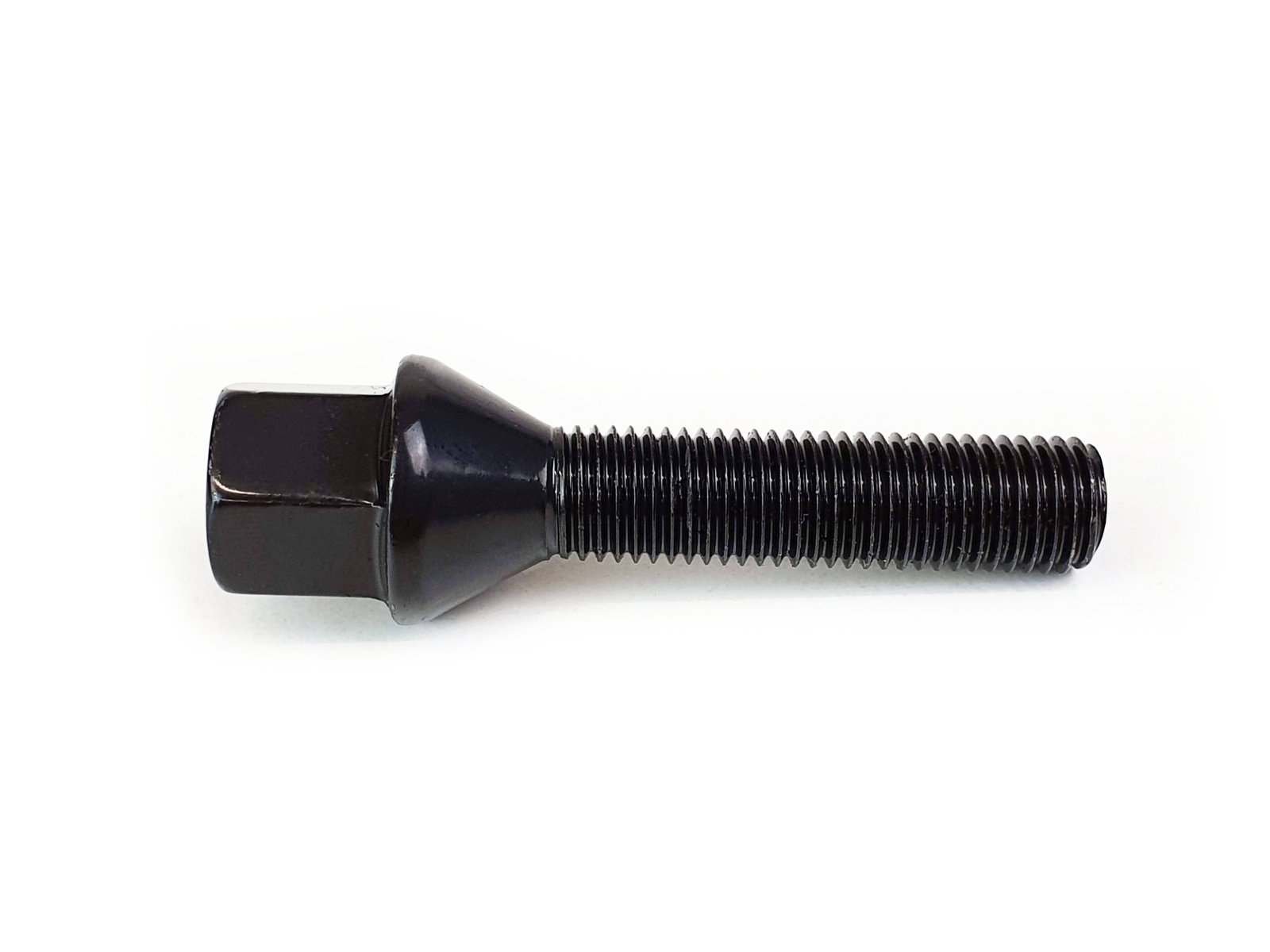

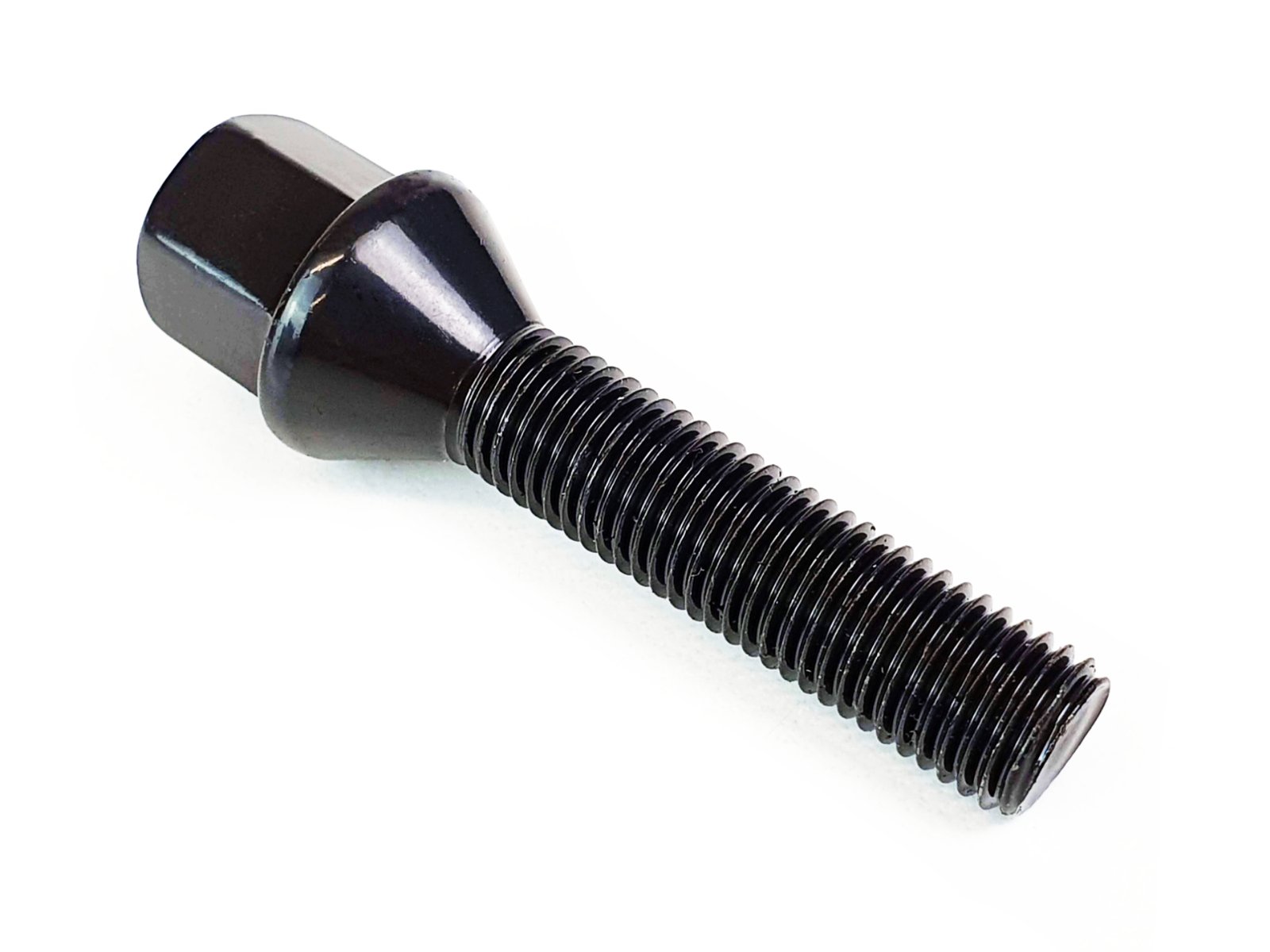

This bolt features a tapered / cone shape as used with all standard OE and aftermarket wheels and enables the fitment of wheel spacers or PCD adapters up to 20mm thick. Bolt dimensions are listed below:
Head Type: Hexagonal 17mm
Shoulder Type: Tapered / Conical
Material: Steel – anodized black coating
Overall Length: 70 mm
Length under Head: 55 mm
Outer Diameter: 23 mm
Outside Thread: M12 x 1.5
Thread Length: 45 mm
Compatibility is only shown as a guide. Please use the extra info provided or if in any doubt about compatibility to your vehicle feel free to contact us with your vehicle chassis number or registration number.
- Supplied brand new
- 12 month warranty as standard
- Free 1st class postage
- Same day dispatch on orders before 2pm (Mon-Fri)
Present in the following vehicles:
Please be aware some of these vehicles listed may take a different size wheel stud. Please match wheel bolt to M12 x 1.5
BMW
1′ E81 (02/2006 — 12/2011)
1′ E87 (02/2003 — 02/2007)
1′ E87 LCI (01/2006 — 06/2011)
1′ E88 (11/2006 — 10/2013)
1′ E82 (11/2006 — 10/2013)
3′ E21 (02/1975 — 12/1983)
3′ E30 (12/1981 — 02/1994)
3′ E36 (11/1989 — 08/2000)
3′ E46 (04/1997 — 08/2006)
3′ E90 (02/2004 — 09/2008)
3′ E90 LCI (07/2007 — 12/2011)
3′ E91 (02/2004 — 08/2008)
3′ E91 LCI (07/2007 — 05/2012)
3′ E92 (05/2005 — 02/2010)
3′ E92 LCI (11/2008 — 06/2013)
3′ E93 (09/2005 — 02/2010)
3′ E93 LCI (11/2008 — 10/2013)
5′ E12 (02/1972 — 07/1981)
5′ E28 (09/1980 — 12/1987)
5′ E34 (03/1987 — 06/1996)
5′ E39 (02/1995 — 12/2003)
5′ E60 (12/2001 — 12/2009)
5′ E60 LCI (10/2005 — 12/2009)
5′ E61 (10/2002 — 02/2007)
5′ E61 LCI (11/2005 — 05/2010)
6′ E24 (10/1975 — 04/1989)
6′ E63 (05/2002 — 07/2010)
6′ E63 LCI (04/2006 — 07/2010)
6′ E64 (09/2002 — 07/2010)
6′ E64 LCI (04/2006 — 07/2010)
7′ E23 (10/1976 — 06/1986)
7′ E32 (10/1985 — 04/1994)
7′ E38 (07/1993 — 07/2001)
7′ E65 (02/2000 — 07/2008)
8′ E31 (07/1989 — 05/1999)
M1 E26 (06/1980 — 07/1981)
X1 E84 (09/2008 — 06/2015)
X5 E53 (10/1998 — 09/2006)
Z3 E36 (12/1994 — 06/2002)
Z4 E85 (01/2002 — 08/2008)
Z4 E86 (10/2005 — 08/2008)
Z4 E89 (01/2008 — 08/2016)
Z8 E52
| Brand | Exile Motorsport Products |
|---|
