Cylinder Head Gasket & Stretch Bolts 1.9 TDI A4 A6 Golf Passat Ibiza OEM Elring

Cylinder Head Gasket & Stretch Bolts 1.9 TDI A4 A6 Golf Passat Ibiza OEM Elring

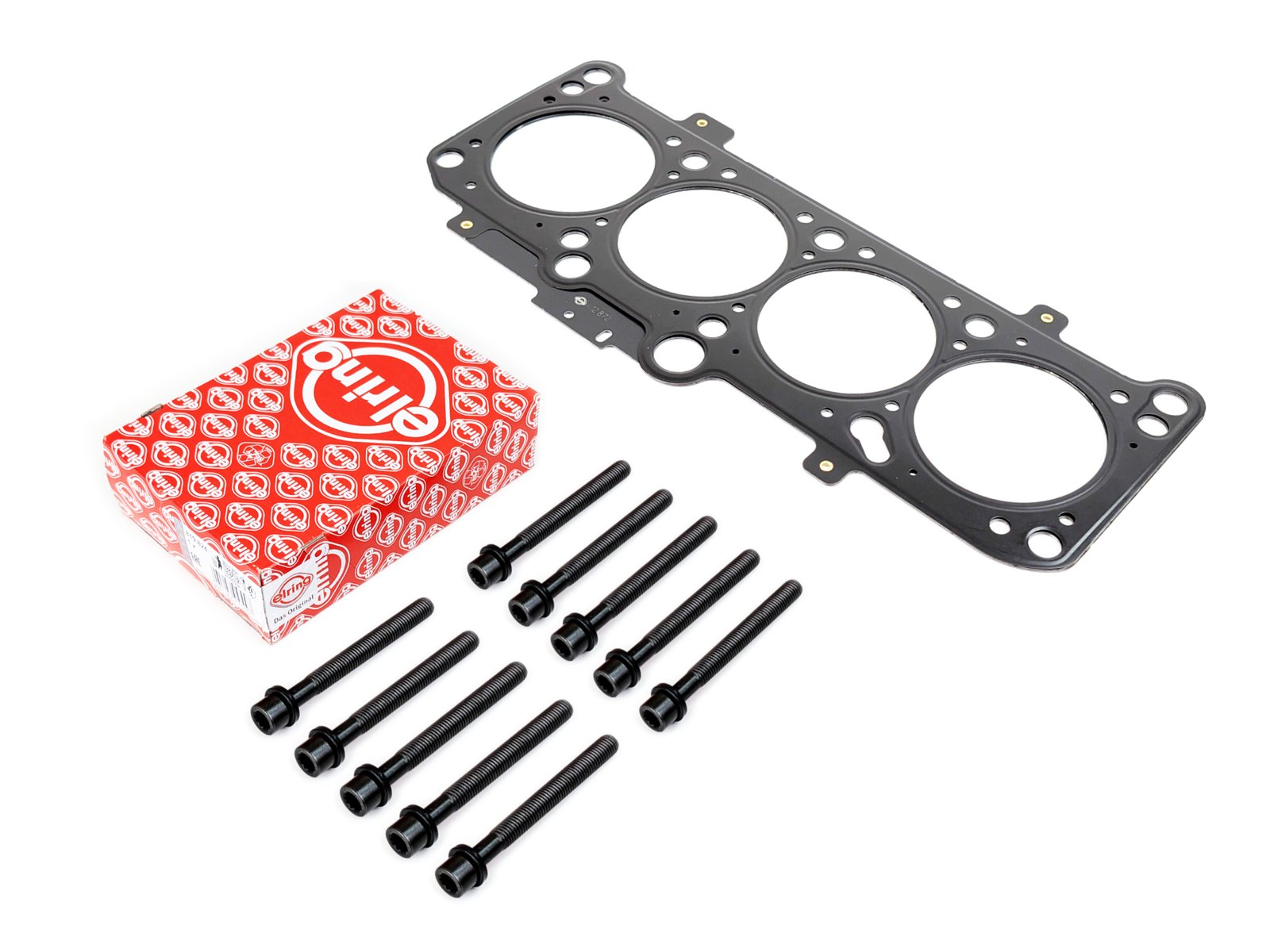

This OEM cylinder head gasket and stretch bolts kit is a direct replacement for the original OE gasket and bolts with part numbers 028103383AS, 028103383BL, 028103383BP and 068103384. For use with 1.9 diesel and TDI 4 cylinder engines used in a selection of Audi VW and Seat models from appromimately 1992 to 2001 such as the Audi A4, A6, VW Golf, Passat and more.

Details:

Gasket
Thickness: 1.45 mm
Installed Thickness: 1.45 mm
Notches/Holes Number: 1 (Please pay close attention to the hole number )
Piston Protrusion from: 0.91 mm, until 1 mm
Ø: 80.5 mm
Gasket Design: Multilayer Steel (MLS)
Number of layers: 4 -layer

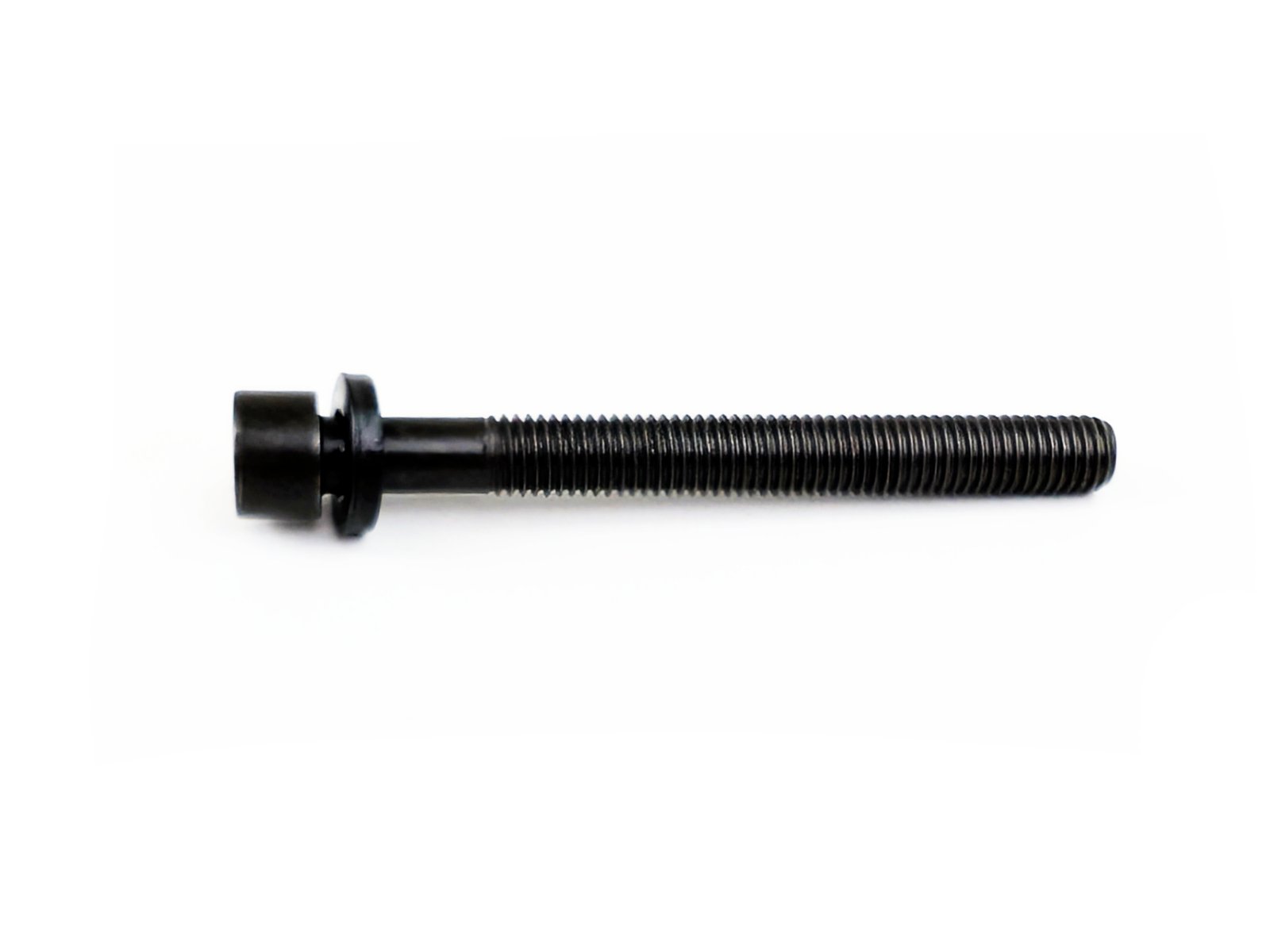

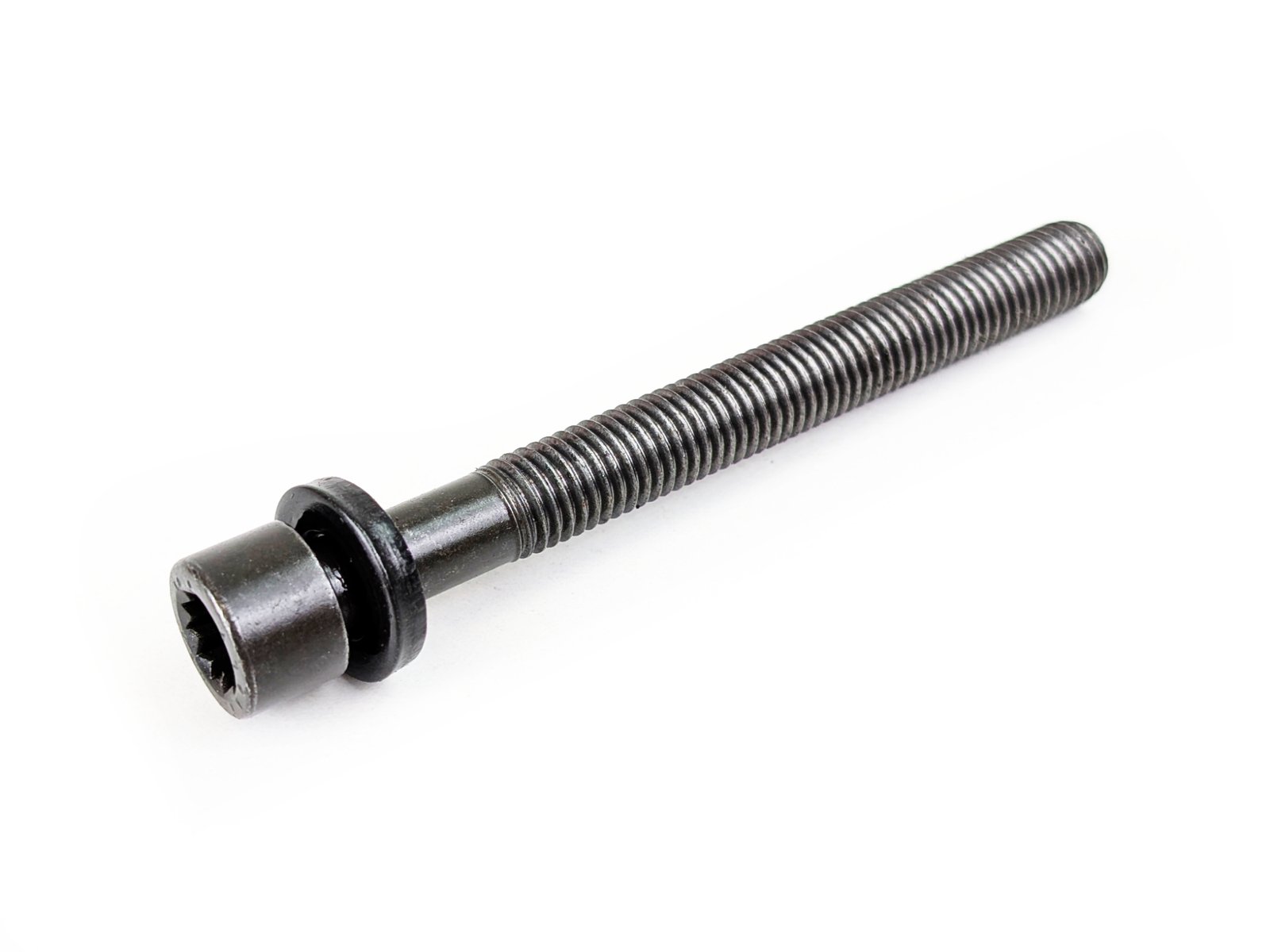

Bolts
Thread Size: M12x1,75×115

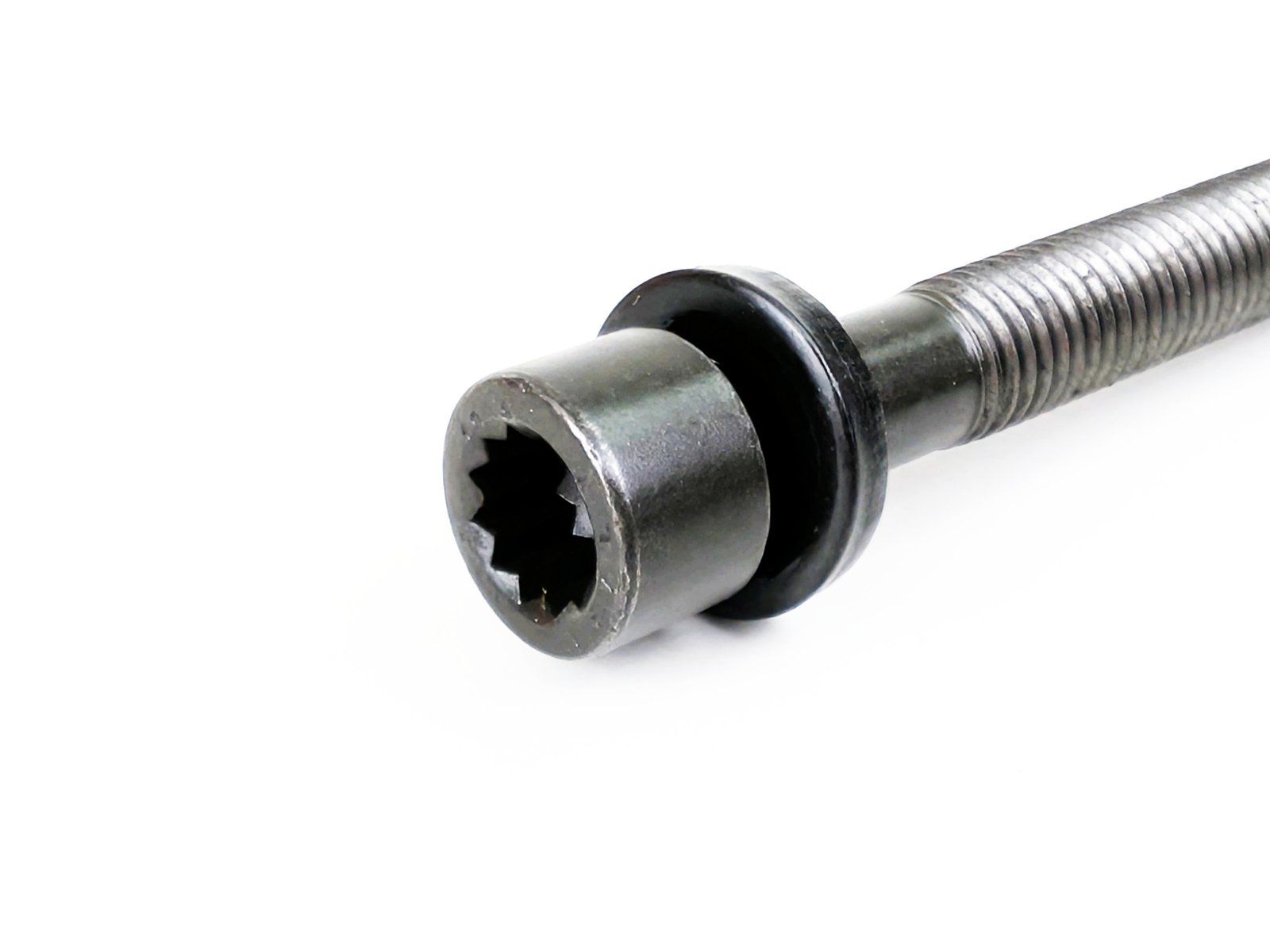

Bolt Head-/Nut Design: Female Star
Spanner Size: X – M12
Number of bolts/screws: 10

Manufactured in Germany, Elring has long been an OEM supplier to VW Audi group and is by far the most reliable product when it comes to engine gaskets.

Please see the fitment guide below. If in any doubt about compatibility to your vehicle feel free to contact us with your vehicle registration number. Please match the part numbers given for each part for a guaranteed fit. Compatibilities are a guide only.

• Brand: Elring – Made in Germany
• Supplied brand new
• 12 month warranty
• Free 1st class postage
• Same day dispatch on orders before 2pm (Mon-Fri)

For engine codes:

1.7 TDI [57BHP-42KW] AKW, AHG
1.7 TDI [60BHP-44KW] AKU

1.9 TDI [110BHP-81KW] – AFN, AVG
1.9 TDI [90BHP-66KW] – 1Z, AHH, AHU, ALE
1.9 TDI [64BHP-47KW] – AEY, AGD, ASX, AYQ

Found in the following vehicles:

Audi
80 8C [1991-1995] 1Z, AFF, AHH, AHU
A4 B5 8D [1994-2000] 1Z, AHH, AHU, AFN, AVG
A6 C4 4B [1994-1997] 1Z, AHU
A6 C5 4B [1997-2005] AFN, AVG

Volkswagen
Caddy 9K [1995-2003] 1Z, AEY, AHU, ALE, ALH, AYQ
Golf III 1H [1991-1999] 1Z, AEY, AHU, AFN, ALE, AVG
Lupo 6E 6X [1998-2005] AKU
Passat 315 312 3B [1998-2000] 1Z, AHH, AHU AFN, AVG
Polo 6V 6N [1994-2001] AEY, AFN, AGD, AGR, AHG, AHU, AKU, AKW, ALE, ALH, ASV, ASX
Sharan 7M [1995-2000] 1Z, AHU, AFN, ANU, AVG
Vento 1H [1992-1999] 1Z, AEY, AFN, AHU, ALE

Seat
Alhambra 7V [1996-2010] 1Z, AFN, AHU, ANU, AVG
Arosa 6H [1997-2004] AKU
Cordoba 6K [1993-1999] 1Z, AEY, AFN, AGR, AHU, ALH, ASV
Ibiza 6K [1993-1999] AFN, ASV
Inca 6K [1995-2003] AEY, AHB, AYQ
Toledo 1L [1991-1999] 1Z, AHU, AFN

Ford
Galaxy 95 [1995-2000] 1Z, AFN, AVG
